Hip/Valley Roofing Shear – M64
$1,450.00

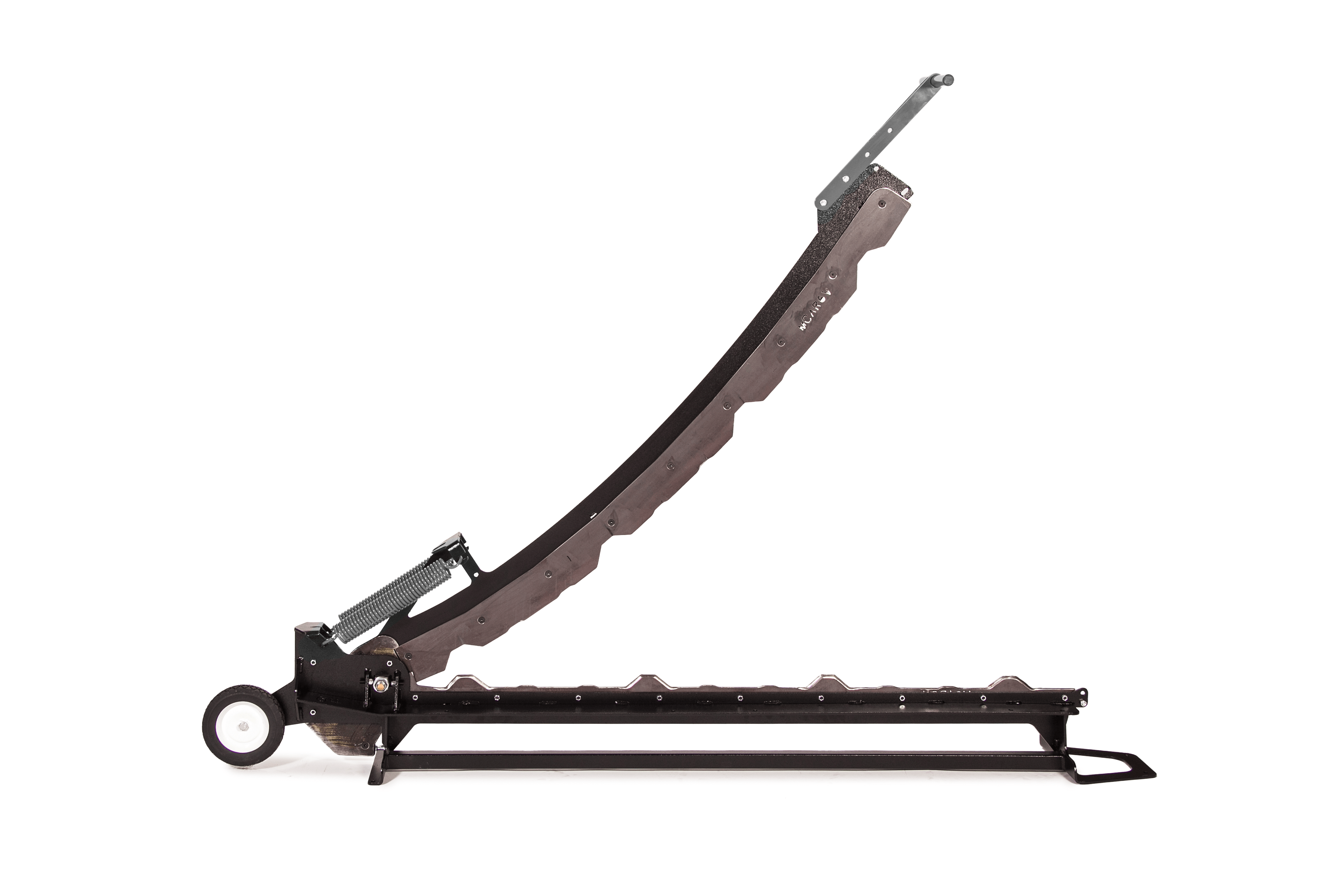

Hip And Valley Roofing Shear M64
The Hip and Valley Roofing Shear is the optimal metal roofing tool for cutting hips and valleys on your metal roof panels.
- Eliminates burred edges and flying metal.
- Ideal for shearing heavy gauge exposed-fastener panels, with the ability to shear straight at 90 degrees and up to a 9/12 valley.
- Makes cutting exposed fastener panel extremely easy.
The Hip and Valley Shear comes with one custom blade set. Each blade set is custom-made to accommodate a specific profile and pitch. The base of the shear is built to accommodate interchangeable blades. When needing to cut a different profile, additional blade sets are available to order.
The shear is transportable, weighs 160 lbs. and designed and manufactured in the USA.
Specifications
Blade Information
Specifications
Panel Size:
Can shear exposed fastener panel up to 64″ in width
Recommended Panel Thickness:
24 gauge
Blades:
Each shear comes with one set of blades attached to the shear.
Blades are custom made to match the exposed fastener panel profile needed.
Weight:
160 lbs
Switching Blades:
Switching between blade sets takes only a few minute.
All that is needed is 3/16″ Allen Wrench and 1/2″ wrench.
Lifetime of Blades:
Blades have been shown to last for thousands of cuts with proper care.
Blade Information
| Blade Information | Capabilities |
|---|---|
| Straight Blade: | Will shear straight at 90º and do up to a 2/12 gable |
| Valley Blade: | A separate blade set will be needed for each valley angle |
| Interchangeable Blade Sets: | The blade set can be changed to accommodate a variety of manufactures’ panel profiles |
| Ideal For: | Valley angles |
